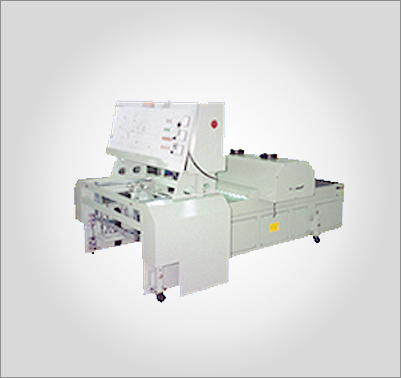

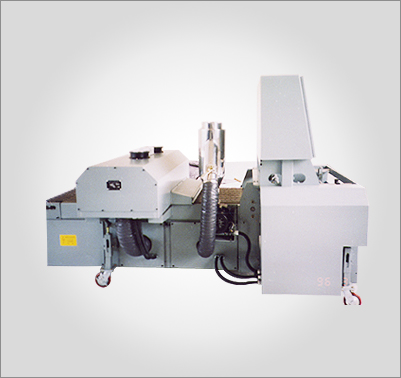

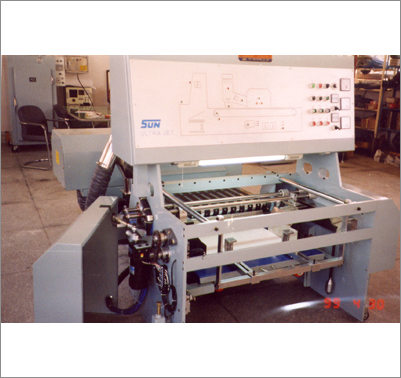

UV Dryer for Card Printing
UV Dryer for Card Printing
UV Dryer for Card Printing
UV Dryer for Card Printing

UV Dryer for Card Printing

Application

Drying all sorts of U-V printed Credit cards or
Bank cards



Detailed description


This Ultra Violet Dryer has been designed for exclusive use for Card Printing and designed based on the most advanced technology aiming at high efficiency with following functions:
1) The printed PVC Sheets (card) are transferred
to the adhesive conveyor, and
2) Transferred to the Ultra Violet Zone for drying,
and
3) Transferred to the film arraying system for
automatic lining up

Heat Ray Cut Filter: It will be installed in the U.V. Zone for the consistent high quality production by minimizing the sheet shrinking phenominon in the drying process.


External Dimension (W x H x L) 1380 x 1530 x 2800
Capacity (UV LAMP) 11.2 KW (5.6KW x 2 set)
