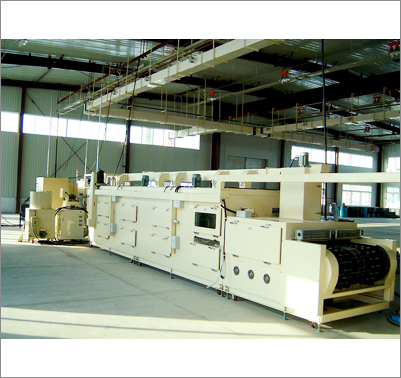

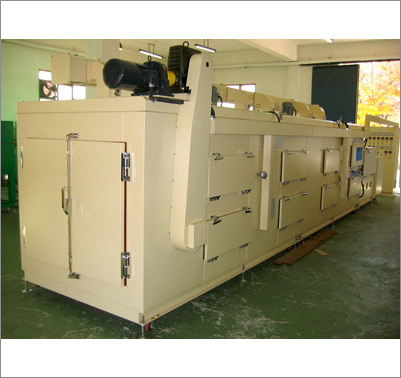

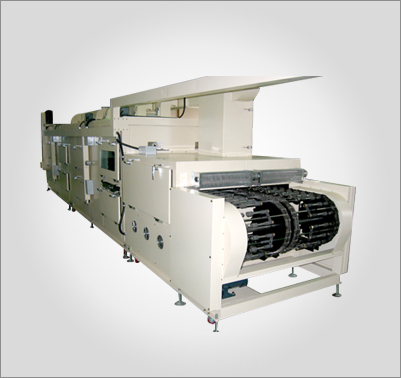

Varnish Application & Drying System

Application

Apply varnish by trickling to the Starter Armatures and drying system.

Detailed description

The system is for drying/curing Starter Armatures after varnish application (by trickling).

The armatures are being rorated on its own axis and moved step by step to the different zones in following step:
· Through the pre-heating zone,
· In the dipping room, varnish will be trickled to the products for the appropriate volume as programmed.
· And they will be transferred to the zone for convection type GEL-dry.
· Then reaches Infra-Red Curing Zone, from which Armatures will be drawn out when the process is completed.

· Varnish to be trickled evenly owing to the quantity control pump applied.
· Protect workers by eliminating the noxious materials using fume collector (easy to exchange filter)
· Overheat protector prevents the risk of fire & explosion of the cabinet heater.
· Revolution and rotation of the products enables even tricking and curing of the varnish
· Automatic & consecutive process improves productivity
